Configure TinyMCE Styles in DotCMS

It is common practice to use CSS classes to format content. With some configuration, the TinyMCE WYSIWYG editor can empower non-code level users to keep with this practice. The styles-dropdown (pictured below) can be populated with a list of classes that can be applied to text in the editor using a span.

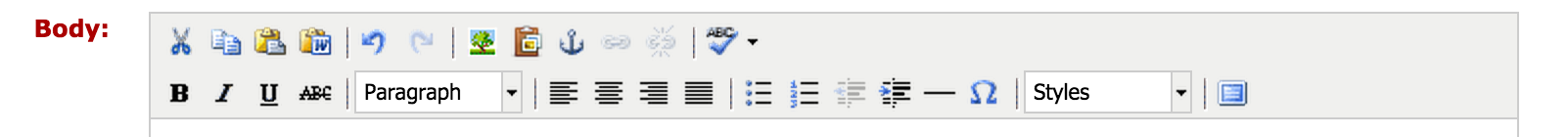

TinyMCE WYSIWYG Menu Bar

By default the TinyMCE WYSIWYG editor in dotCMS includes the styles-dropdown but it is empty. In order to configure TinyMCE beyond the default install for dotCMS, the plugin needs to be installed to our static-plugin directory. Directions form dotCMS to do that are available here

With that out of the way, let’s get to configuring some styles!

We will be modifying two of the files from the TinyMCE plugin: tiny_mce_config.jsp and plugin.properties.

Updates to ‘tiny_mce_config.jsp’:

There is a section of code as follows:

<% /*Set the WYSIWYG BLOCK FORMATS*/
  String blockformats =APILocator.getPluginAPI().loadProperty("org.dotcms.tinymce_extended", "WYSIWYG_BLOCKFORMATS");
  if(UtilMethods.isSet(blockformats)){
  %>
  <%="theme_advanced_blockformats : ""+blockformats+"","%>
  <%
  }else{
  %>
  <%="theme_advanced_blockformats : "p,div,h1,h2,h3,h4,h5,h6,blockquote,dt,dd,code,samp,pre","%>
  <%
  }
%>

We are going to use this code as a model for how our styles-dropdown will be populated. Replace the ‘blockformats’ references with ‘styles’ and update the default string with a list of classes like:

"content,nav,footer,subHeader",

Or for a prettier list in the dropdown:

"Content=content;Nav=nav;Footer=footer;Sub Header=subHeader",

Even an empty list is fine because the property in the next file will override whatever we put as the default. The final product should look something like this:

<% /*Set the WYSIWYG STYLES*/
  String styles =APILocator.getPluginAPI().loadProperty("org.dotcms.tinymce_extended", "WYSIWYG_STYLES");
  if(UtilMethods.isSet(styles)){
  %>
  <%="theme_advanced_styles : ""+styles+"\","%>
  <%
  }else{
  %>
  <%="theme_advanced_styles : "\","%>
  <%
  }
%>

Now we need to update the ‘plugin.properties’ file to include our custom styles.

Updates to ‘plugin.properties’:

We will again use the ‘blockformats’ configuration as a guide. It looks like this:

#specify the theme blockformats the wysiwyg should use
#if is not set by default use this blocksformats: "p,div,h1,h2,h3,h4,h5,h6,blockquote,dt,dd,code,samp,pre"
WYSIWYG_BLOCKFORMATS=p,div,h1,h2,h3,h4,h5,h6,blockquote,dt,dd,code,samp,pre

The resulting ‘styles’ section looks like this:

#specify the theme styles the wysiwyg should use
#if is not set the default is: ""
WYSIWYG_STYLES=Content=content;Nav=nav;Footer=footer;Sub Header=subHeader

Now when we restart the server, the TinyMCE WYSIWYG editor will have a populated styles-dropdown that will apply <span class="style" >...<\span> to our content that can be formatted using our normal CSS file for our site.
